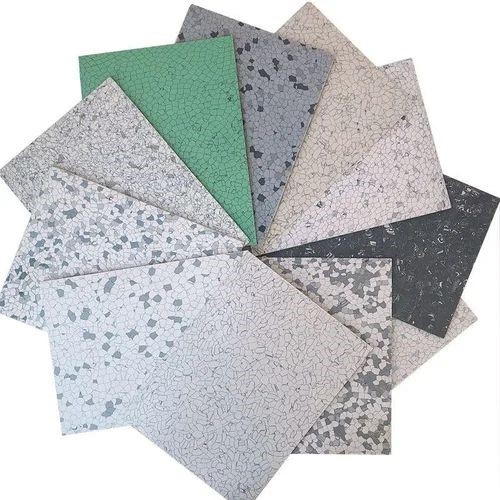

ESD Vinyl Tiles Installation

Clean the ground and find the centre line:
First, clean the ground slag, and then find the centre of the room with a measuring tool, draw the centre cross line, and ask the cross line to be equally divided vertically.

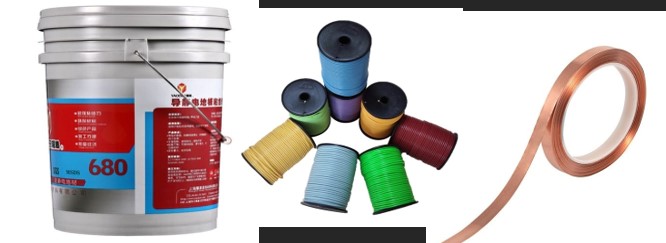

Laying copper foil (or aluminium foil) network 100cm*100cm:

• Paste copper foil strips on the ground according to the specified size to form a mesh. The intersection of the copper foil should be bonded with conductive glue to ensure the conduction between the copper foils;
• At least four points per 100 square meters in the pasted copper foil network are connected to the grounding wire.

Laying the floor:

• Use a scraper to smear part of the conductive glue on the ground first. Due to the particularity of the conductive material, it is recommended to use special conductive glue;
• In the process of laying the floor, it is necessary to ensure that the copper foil passes under the floor;
• Use a welding torch to soften the electrode at high temperature and weld the space between the floor and the floor;
• Cut off the protruding part of the electrode with a knife to complete the entire ground construction;
• During the construction process, a meg-ohm meter is often used to test whether the surface of the floor is connected to the copper foil. If there is no connection, find the reason and re-paste it to ensure that the surface resistance of the floor is between 106-109Ω.
• After the floor is laid, the surface must be cleaned.

Maintenance:

• Do not scratch the floor with sharp hard objects and keep the surface smooth;
• When cleaning the floor, scrub with a neutral detergent, rinse with water and dry, and then apply anti-static wax.

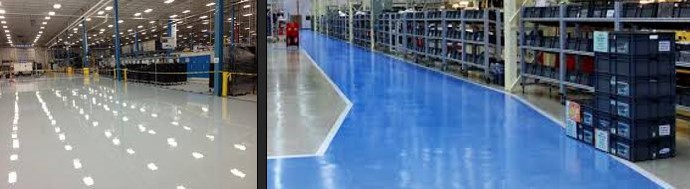

ESD Epoxy & NON ESD Epoxy Installation

Aghanta Technologies Pvt Ltd is best epoxy flooring exporters in India .With the help of our group of exceedingly talented specialists, we have possessed the capacity to render incredible modern industrial Epoxy flooring. We are professional epoxy flooring Manufacturer and exporters in India.

Our Epoxy flooring services are extremely highlighted for its marvelous strength, life-long efficiency, appealing look, and easy maintenance. The coating is done perfectly according to customer’s choice so as to provide complete satisfaction. Moreover, our skilled personnel firmly follow all quality parameters & standards in providing these services to certify fivestar level. The administrations rendered by us are generally refreshing for the selective outlines and styles accessible for deck. These coatings are easy to clean and maintain. We make utilization of trend setting innovation and gear to render the ground surface administrations in the most ideal way. Epoxy Flooring services are offered by us in close coordination with the regarded customers. Our clients can take this epoxy flooring services from us at reasonable rates. We offer floor coating services and waterproofing solutions for the large construction industry and protective coating solutions for metal and concrete enterprises.

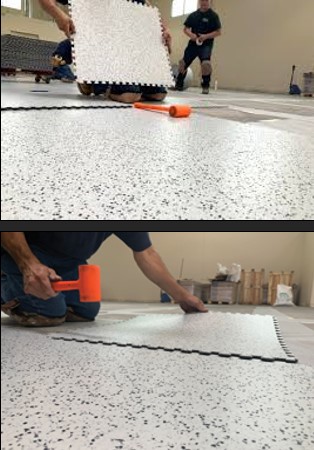

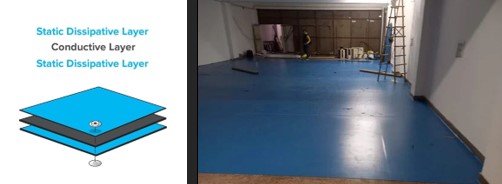

ESD PVC & Rubber Mat Installation

The adhesive is linked to ground with copper connector straps placed at the perimeters of the room. The straps, usually about 24” long, can be attached to electrical outlets, conduit, building steel, or a dedicated grounding bar. Only one connection is necessary for every 1000 square feet of contiguous ESD flooring.
