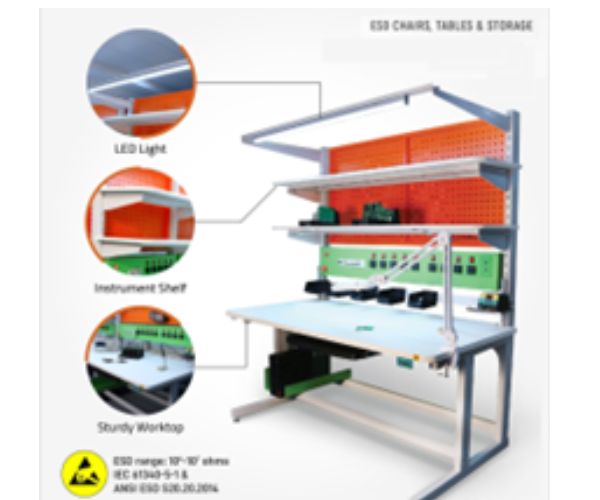

ESD Powder Coated Tables
Product Specifications
| Type |
Welded |
| Material |
MS channel pipe 30 x 30 (mild steel) |
| Thickness |
18 gauge |
| Working Table Top Size |
4ft (L) x 2ft, 4in (W) x 2ft, 6in (H) from bottom |
| Top Shelf Size |
4ft (L) x 1ft, 6in (W) |
| Overall Height with Top Shelf |
4ft (H) |
| Coating |
Powder Coated |
We are leading Supplier. Manufacture of ESD Workstations.
Pre-laminated Table- Top duly Post formed:
- Thickness 18mm pre-laminated Board (With Cable Manager Hole)
- Anti-Static Mat on the table top
- Surface Resistivity of ESD mat: 10^8 to 10^9 Ohms
- As per ESD Standard ANSI/ESD S 20.20.2014
- Grounding cord with 1mega ohm resistance
Power Bar: Modular Switches & Sockets:
- 5x15Amp Socket = 4 No
- 36W Tube light = 1no, fixed below the shelf
Fixed Instrument Shelf duly Post formed:
- Size: 1200mmx 325mm
