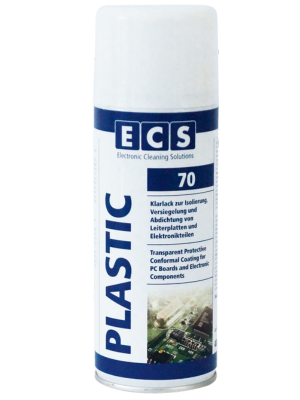

PLASTIC is based on an acrylic resin particularly suitable for the electronic industry. It forms a shiny, flexible and protective film that is resistant to acids, salt, fungus, corrosive vapors, thermal stress, mechanical abuse, alkalis, alcohols, moisture, and tough environmental conditions. It retains its effectiveness within a wide range of temperatures from –70°C to +120°C. The lacquer adheres to various materials such as metal, plastics, wood, cardboard, glass etc. PLASTIC does not drip and permits soldering through its own layer. PLASTIC contains an UV indicator for quality control. PLASTIC meets MIL-1- 46058C. „Type Acrylic Resin“. PLASTIC protects printed circuit boards, components, wire cables, etc. Elimination or prevention of creepage current, corona effects, short-circuits or discharges. PLASTIC seals out water, dirt and moisture and is an ideal corrosion protection of parts subjected to bad atmospheric conditions. It is water proofing of various materials such as cardboard, wood, leather, etc.
| Colour | Transparent |
| Smell | Of solvent |
| Density | 0,88 g/cm³ |
| Surface resistance | 5 x 10¹⁴ Ω |
| Contact resistance | 10¹⁴ Ω/cm |
| Dielectric strength | 21 kV/mm |
| Leakage current resistance (CTI) | > 600 Volt |
| Temperature resistance (Class E acc. to VDE 0360) | -70°C up to +120°C |
| Art. No. 400 ml | 770.400.000 |
