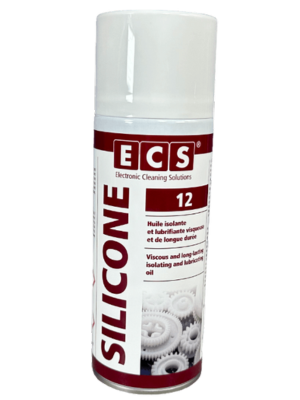

SILICONE


SILICONE contains a high-quality, thin insulating silicone oil with a breakdown voltage of 12 kV/mm. It forms an inert, clear film which does not dry up, is water-repellent and therefore is an excellent water and moisture buffer. SILICONE is also a good universal lubricant for plastics and rubber and is stable within a wide temperature range from -50° C up to +200° C. Furthermore, it is non-toxic, non-staining and does not attack any engineering material. To avoid spark discharge in high voltage transformers, on tube bases, etc. SILICONE eliminates reliably the creepage currents and corona effects, prevents shortcuts and insulates. It prevents sticking and is an excellent separating, mould release and wire pulling agent. The thin invisible film lubricates plastic bearings, drives, gear and rubber.

Apperance Clear, Colourless liquid
Smell Typical mild
Density 0,97g/cm³
Viscosity film at 25°C 1000 mm²
Thermal conductivity 0,16 W/m K
Dielectric strength at 20°C 12 kV/mm
Dielectric constant at 25°C 2,8 (0,5 to 100 kHz)
Compatibility with materials Very good
Temperature resistance -50°C up to +200°C
Art. No. 400 ml 712.400.000
